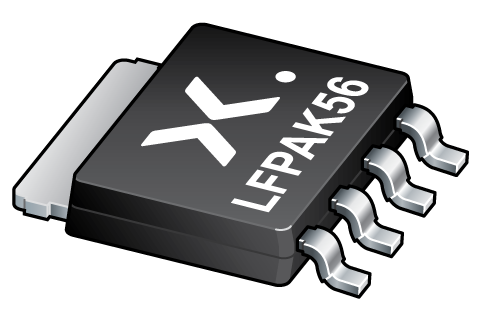

MOSFET(BUK7Y38-100E)
可出货量：1000000.0 PCS
产品型号：BUK7Y38-100E
Product Details
产品介绍:
| 参数 | 值 |
| Package version | SOT669 |
| Package name | LFPAK56; Power-SO8 |
| Product status | Production |
| Channel type | N |
| Nr of transistors | 1 |
| [max] (V) | 100 |
| = 10 V (mΩ) | 38 |
| = 5 V (mΩ) | |
| = 4.5 V; @25 C (mΩ) | |
| = 2.5 V (mΩ) | |
| = 10 V (mΩ) | 24.5 |
| = 5 V (mΩ) | |
| = 4.5 V (mΩ) | |
| = 2.5 V (mΩ) | |
| = 175 °C (mΩ) | 105 |
| [max] (°C) | 175 |
| [max] (A) | 30 |
| [max] @ T = 100 °C (A) | 21 |
| [max] (A) | 120 |
| [typ] (nC) | 11.3 |
| = 4.5 V (nC) | |
| = 10 V (nC) | 30.9 |
| [max] (W) | 95 |
| [typ] (nC) | 45.5 |
| [typ] (V) | 3 |
| Automotive qualified | Y |
| [typ] (pF) | 1293 |
| [typ] (pF) | 145 |
| [max] (K/W) | 1.58 |
| Release date | 2013-02-14 |
